Hibernate Tools

Tooling for your Hibernate projects.

Reverse engineer Java entities from an existing SQL database schema.

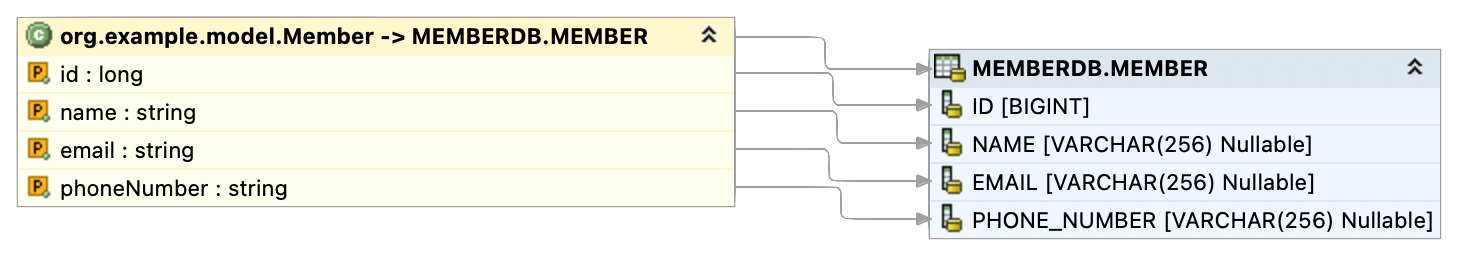

Reverse engineering from a database

Hibernate Tools generates entity classes from a relational database schema. The code generator is is written in Java, and can be called directly from Java code, but it’s also integrated with Maven, Gradle, and Ant.

Reverse Engineering

Customizable code generation

The generated code is highly customizable:

  • via XML-based configuration, or

  • by plugging in custom generation strategies.

In addition to entities, artefacts such as DAO classes, HTML documentation, or even UI components may be generated via the use of custom or built-in generation templates.

Project configuration

Let’s suppose that we have a database running, for example, the H2 Sakila database.

Let’s also suppose that the following hibernate.properties file is available somewhere on the project class path:

hibernate.connection.driver_class=org.h2.Driver
hibernate.connection.url=jdbc:h2:tcp://localhost/./sakila
hibernate.connection.username=sa
hibernate.default_catalog=SAKILA
hibernate.default_schema=PUBLIC

With this in place, let’s show some possible uses of the reverse engineering tooling to create Java classes from the database.

Using the Maven plugin

The Hibernate Tools Maven plugin can be used either directly or by configuration in the pom.xml file of our project to generate entity classes or other artefacts. Let’s assume we have created a Maven project with the following pom.xml file.

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>org.bar</groupId>
    <artifactId>foo</artifactId>
    <version>1.0-SNAPSHOT</version>

    <properties>
        <hibernate-core.version>${hibernate.version}</hibernate-core.version>
        <h2.version>${h2.version}</h2.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.hibernate.orm</groupId>
            <artifactId>hibernate-core</artifactId>
            <version>${hibernate-core.version}</version>
        </dependency>
        <dependency>
            <groupId>com.h2database</groupId>
            <artifactId>h2</artifactId>
            <version>${h2.version}</version>
        </dependency>
    </dependencies>

</project>

Let’s also assume that the src/main/resources folder contains the hibernate.properties file shown earlier.

Having this in place, simply issuing:

mvn org.hibernate.tool:hibernate-tools-maven:${hibernate.version}:hbm2java

from a command line prompt in the project folder will use all the default settings to generate Java classes for the tables in target/generated-sources/.

me@machine foo % ls target/generated-sources
Actor.java          Film.java               Inventory.java
Address.java        FilmActor.java          Language.java
Category.java       FilmActorId.java        Payment.java
City.java           FilmCategory.java       Rental.java
Country.java        FilmCategoryId.java     Staff.java
Customer.java       FilmText.java           Store.java
me@machine foo %

Of course all these defaults can be overridden and tuned. Please consult the documentation for more information.

Using Gradle tasks

Let’s assume in this case that we start off with a very simple default Gradle application, for example, a project created via gradle init --type java-application --dsl groovy.

With this setup, we replace the contents of the file app/build.gradle with the code below:

plugins {
    id('application')
    id('org.hibernate.tool.hibernate-tools-gradle') version '${hibernate-tools.version}'
}

repositories {
    mavenCentral()
}

dependencies {
    implementation('com.h2database:h2:${h2.version}')
}

As a final precondition, we make sure that the above hibernate.properties file is present in folder app/src/main/resources.

With this in place, issuing:

gradle generateJava

will use all the default settings to generate Java classes for the tables in app/generated-sources/.

Using good old Ant

Creating an Ant project is very simple. We only need a build.xml file to be present in the root of the project. In order to manage the needed dependencies, the easiest way is to use the Ant tasks provided by Apache Ivy.

Our build.xml file will be looking like below:

<project xmlns:ivy="antlib:org.apache.ivy.ant">

    <property name="hibernate.tools.version" value=the-hibernate-tools-version-to-use/>
    <property name="h2.version" value=the-h2-version-to-use/>

    <ivy:cachepath organisation="org.hibernate.tool" module="hibernate-tools-ant" revision="${hibernate.tools.version}"
                   pathid="hibernate-tools" inline="true"/>
    <ivy:cachepath organisation="com.h2database" module="h2" revision="${h2.version}"
                   pathid="h2" inline="true"/>

    <path id="classpath">
        <path refid="hibernate-tools"/>
        <path refid="h2"/>
    </path>

    <taskdef name="hibernatetool"
             classname="org.hibernate.tool.ant.HibernateToolTask"
             classpathref="classpath" />

    <target name="reveng">
        <hibernatetool destdir="generated-sources">
            <jdbcconfiguration propertyfile="hibernate.properties" />
            <hbm2java/>
        </hibernatetool>
    </target>

</project>

With the hibernate.properties file from above also present in the root of the project, simply issuing:

ant reveng

generates the Java files in the folder generated-sources.
